Series PRG
11.2 [.44] x 30.2 [1.19] Panel Cutout

FEATURES & BENEFITS
• Easy to install snap-in mounting • Full illuminated rocker option • Wide range of marking options and functions available	• Solder lug or FASTON .250 Tab terminals • Cost competitive

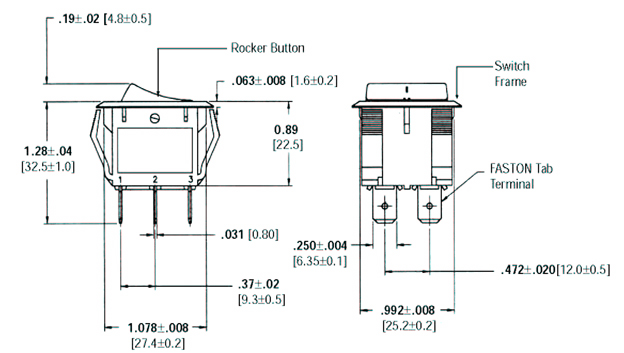

PRODUCT DIMENSIONS

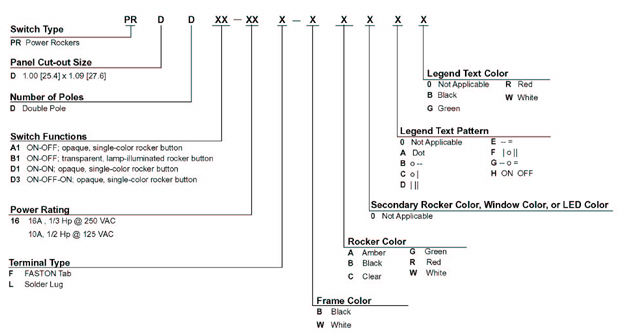

ALCOSWITCH PART NUMBER

PRODUCT OFFERING

Part Numbers
Alcoswitch	Tyco Electronics
PRGSB1-16F-BG000 PRGSB1-16F-BR000 PRGSA1-16F-BR000 PRGSA1-16F-BB0BW PRGSA1-16F-BB0AW PRGSA1-16F-BB000	0-1634202-6 0-1634202-5 0-1634202-4 0-1634202-3 0-1634202-2 0-1634202-1
