Series PRB
.54 [13.8] x 1.09 [27.6] Panel Cutout

FEATURES & BENEFITS
• Easy to install snap-in mounting • Dual color rocker option • Full-illuminated rocker option • LED window illuminated option	• Wide range of marking options and functions available • Solder lugs or .250 FASTON Tab terminals • Cost competitive

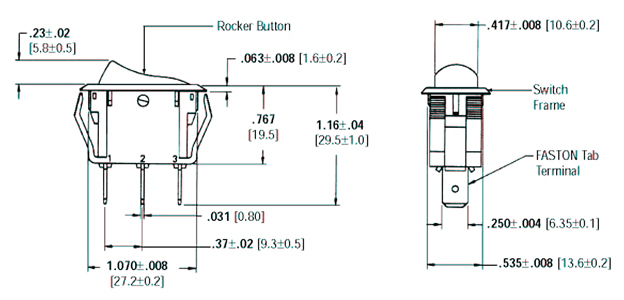

PRODUCT DIMENSIONS

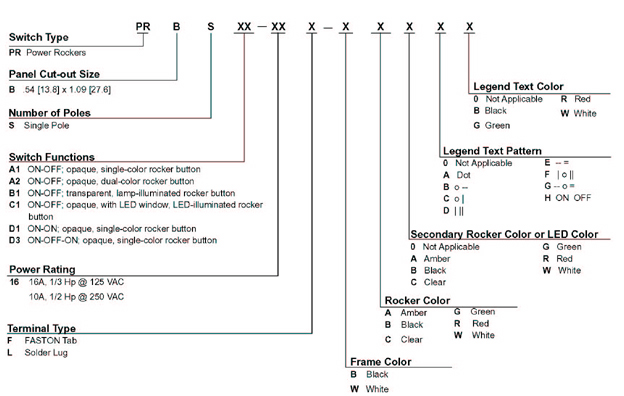

ALCOSWITCH PART NUMBER

PRODUCT OFFERING

Part Numbers
Alcoswitch	Tyco Electronics
PRBSC1-16F-BBR00 PRBSC1-16L-BBR00 PRBSA1-16F-BB000 PRBSA1-16F-BB0BW PRBSA1-16F-BB0CW PRBSA1-16L-BB000 PRBSA1-16L-BB0BW PRBSA1-16L-BB0CW PRBSA1-16F-BR000 PRBSA1-16L-BR000 PRBSA1-16F-BB0HW PRBSA1-16F-BR0HW PRBSA1-16F-BW000 PRBSA1-16F-BW0HB	1571087-1 1571087-2 1571091-1 1571091-2 1571091-3 1571094-4 1571091-5 1571091-6 1571091-7 1571091-8 1571091-9 1-1571091-0 1-1571091-1 1-1571091-2

Part Numbers
Alcoswitch	Tyco Electronics
PRBSB1-16F-BR000 PRBSB1-16F-BA000 PRBSB1-16F-BC000 PRBSD1-16F-BB000 PRBSD1-16F-BB0DW PRBSD1-16F-BB0EW PRBSD3-16F-BB000 PRBSD3-16F-BB0FW PRBSD3-16F-BB0GW PRBSD3-16F-BW000	1571092-1 1571092-3 1571092-4 1571094-1 1571094-2 1571094-3 1571094-4 1571094-5 1571094-6 1571094-7
