Series PRE
19.4 [.76] x 22.2 [.87] Panel Cutout

FEATURES & BENEFITS
• Easy to install snap-in mounting • Dust resistant • Dual colour rocker option • Full-illuminated rocker option	• LED or incandescent window illuminated option • Wide range of marking options and functions available • Solder lugs or .187 FASTON Tab terminals • Cost competitive

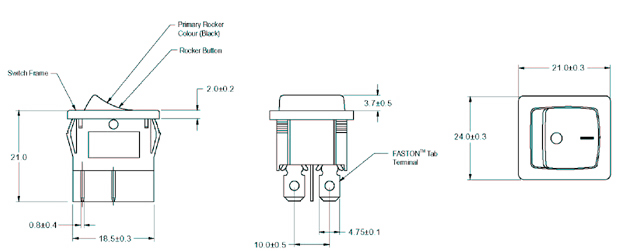

PRODUCT DIMENSIONS

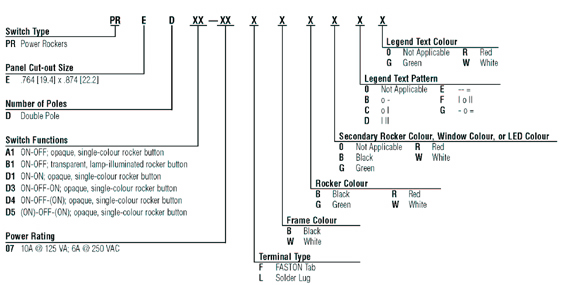

ALCOSWITCH PART NUMBER

PRODUCT OFFERING

Part Numbers
Alcoswitch	Tyco Electronics
PREDA1-07F-BB000 PREDA1-07F-BB0BW PREDA1-07F-BB0CW PREDA1-07L-BB000 PREDA1-07L-BBOBW PREDA1-07L-BB0CW PREDB1-07F-BR000 PREDB1-07L-BR000 PREDB1-07F-BG000 PREDB1-07L-BG000 PREDD1-07F-BB000 PREDD1-07F-BB0DW PREDD1-07F-BB0EW	0-1634200-1 0-1634200-2 0-1634200-3 0-1634200-4 0-1634200-5 0-1634200-6 0-1634200-7 0-1634200-8 0-1634200-9 1-1634200-0 1-1634200-1 1-1634200-2 1-1634200-3

Part Numbers
Alcoswitch	Tyco Electronics
PREDD1-07L-BB000 PREDD1-07L-BB0DW PREDD1-07L-BB0EW PREDD3-07F-BB0FW PREDD3-07F-BB0GW PREDD3-07L-BB0FW PREDD3-07L-BB0GW PREDD4-07F-BB000 PREDD4-07F-BB0FW PREDD4-07F-BB0GW PREDD5-07F-BB000 PREDD5-07F-BB0FW PREDD5-07F-BB0GW	1-1634200-4 1-1634200-5 1-1634200-6 1-1634200-7 1-1634200-8 1-1634200-9 2-1634200-0 2-1634200-1 2-1634200-2 2-1634200-3 2-1634200-4 2-1634200-5 2-1634200-6
